MSC Super + Power Bank 570Wh (156Ah) 5v/12v/220v

MSC Super + Power Bank 550Wh
MSC Super + Power Bank 550Wh
  • Premium Super + Power Bank, 570Wh Lithium-ion rechargeable battery 5v/12v/220v.
  • 2 x USB 5v, suitable for all phones and 5v Tablets, USB lights, Garmin, Go Pro etc.
  • Dual DC 12v/10A, Dual plug AC 500W pure sine inverter, International sockets.
  • Additional inbuilt Car cigarette lighter charging socket.
  • Suitable to run Totalcool evaporative air conditioner, UAV, Ultra-Sound & Thermal Cameras.
  • A robust outer case, the rechargeable external battery would give most mobile phones 60 + full charges
  • It has an inbuilt MPPT solar controller for use with our solar panels.
  • Recharges from mains, 12v Car or our 100W(32v) or 90w/130W (20v)  Solar Panel Chargers
  • It has 'Charge through' meaning it can charge and recharge simultaneously, i.e. whilst connected to solar.
  • NB:  The Air Travel passenger regulations allow Li-Po batteries up to 160W, this is 577W
  • Retains power for months
  • 2-year warranty

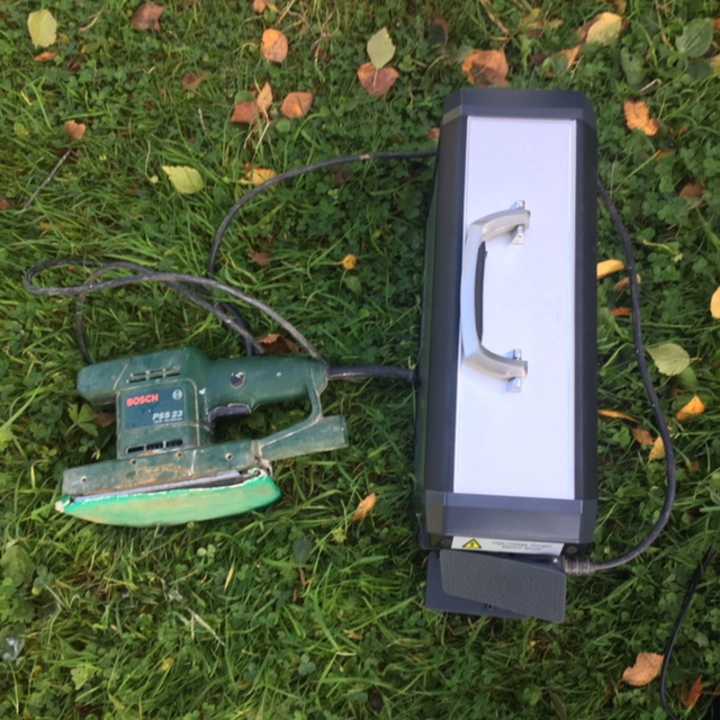

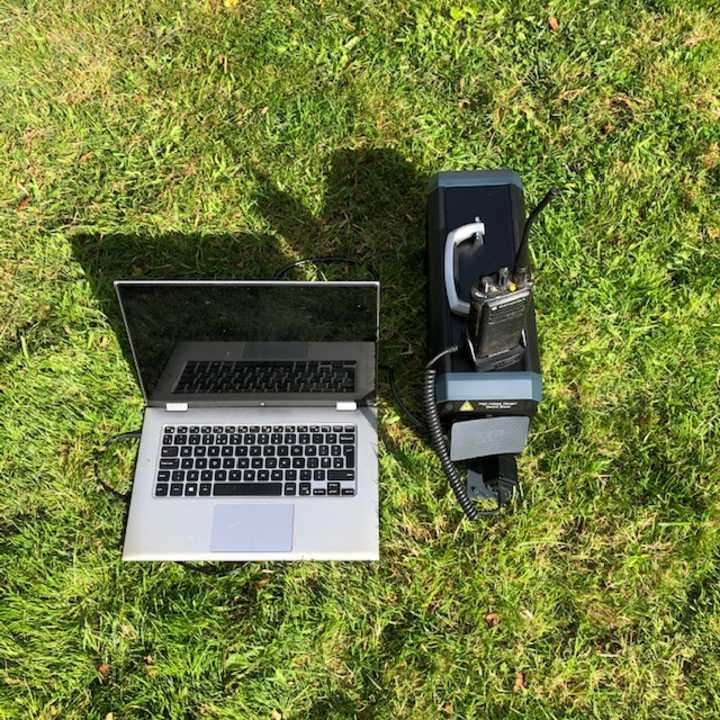

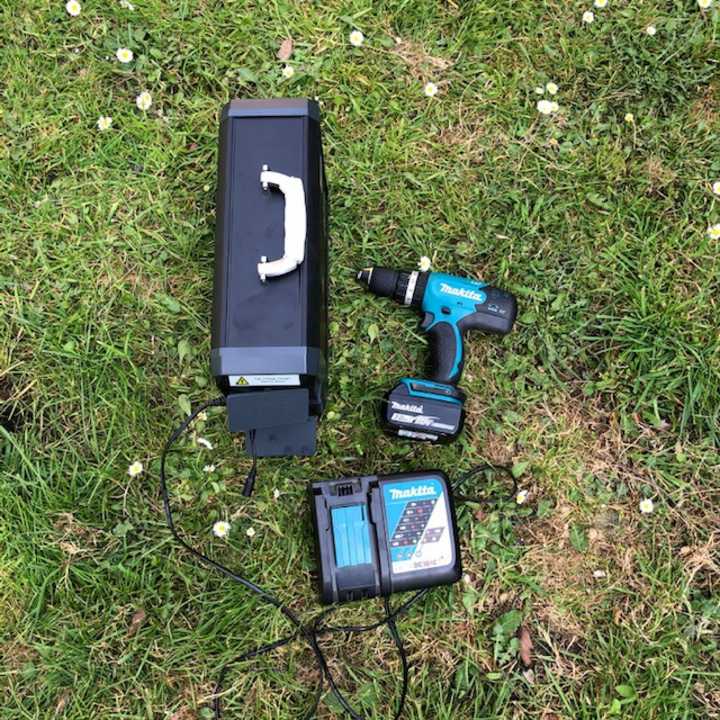

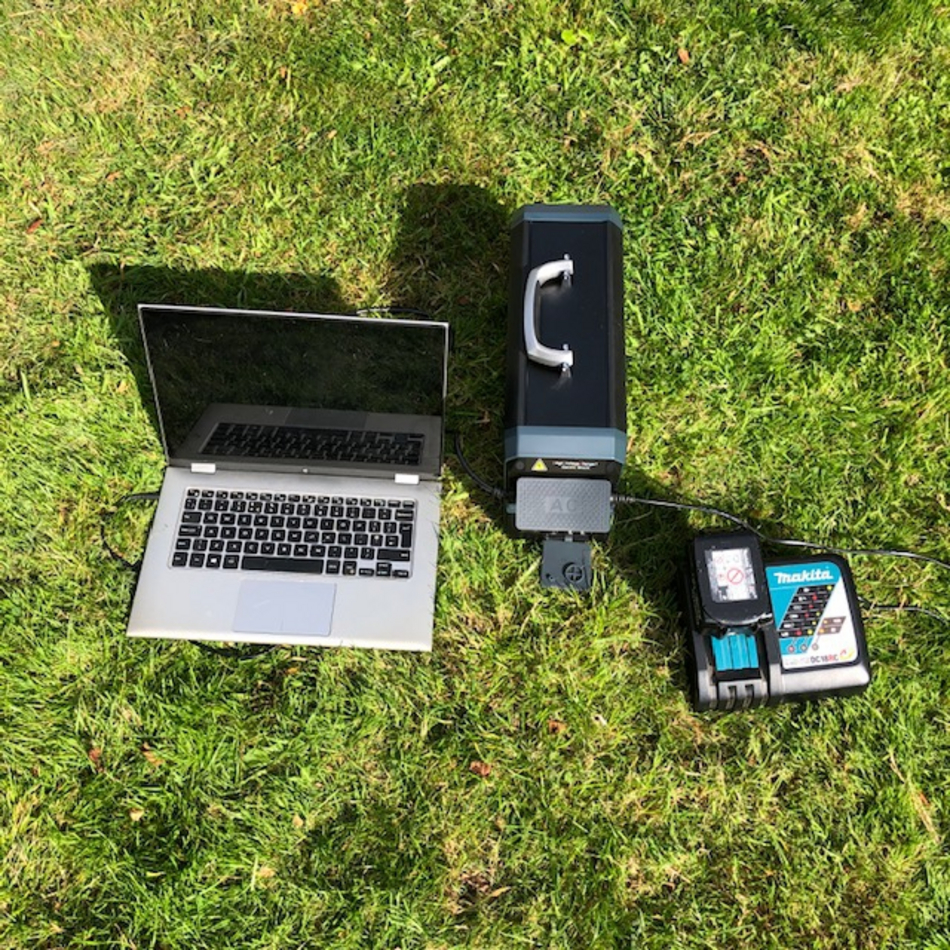

MSC 500Wh running Laptop and power tool
MSC 500Wh running Laptop and power tool

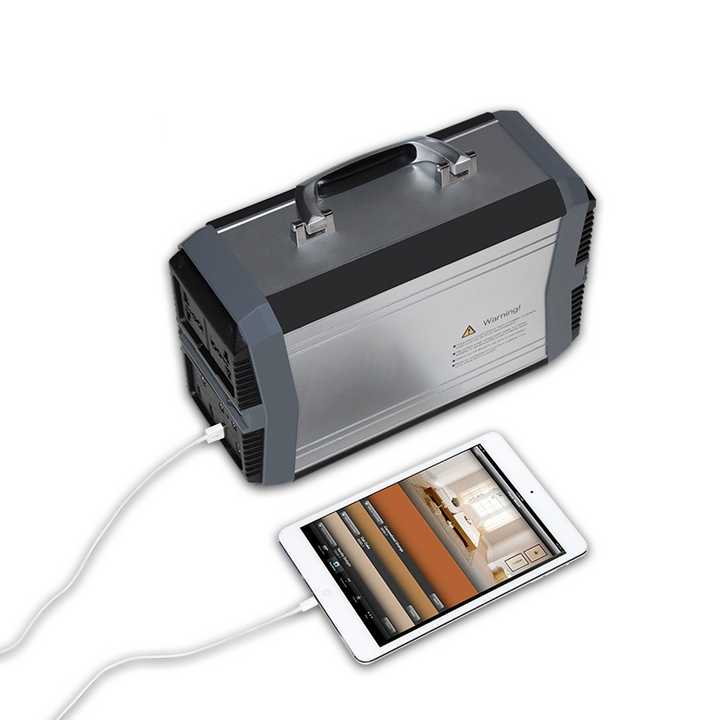

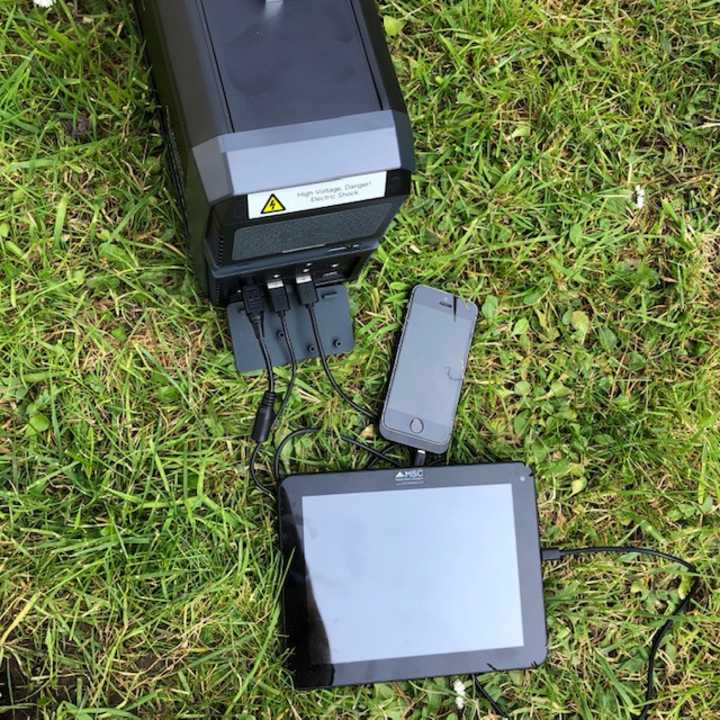

MSC 500Wh Super + Power Bank charging Phone & Tablet
MSC 500Wh Super + Power Bank charging Phone & Tablet

The MSC 570W is a premium Super Power Bank, able to charge most portable devices with a voltage range between 5v (USB), 12v  DC (Laptops) & Pure Sine 220v AC.  It has very sophisticated inbuilt electronics to protect against over/under-charge and is suitable for charging remote control Aircraft, Drones, CPAP, Fridges etc.

The 570Wh battery would give an iPhone 5 over 70 + full charges a Tablet 30 + and most 12v Laptops 7 +  full charges.

The Premium Lithium-ion batteries mean that it has very little loss of power on transfer, holds a full charge for months and should give years of reliable service. It is able to charge all phones and any other USB charged device, including Garmin, Go Pro and electric cigarettes.

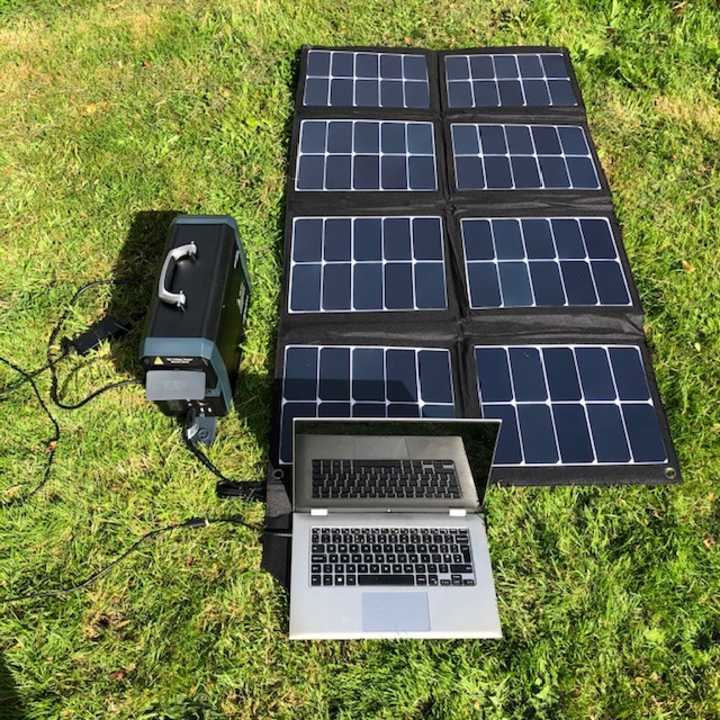

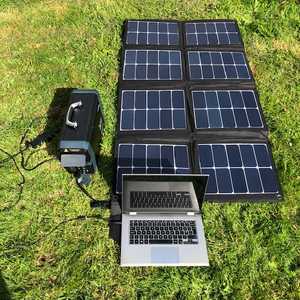

MSC 550W Super Power Bank & MSC 100W (32v) Sunpower Solar
MSC 550W Super Power Bank & MSC 100W (32v) Sunpower Solar

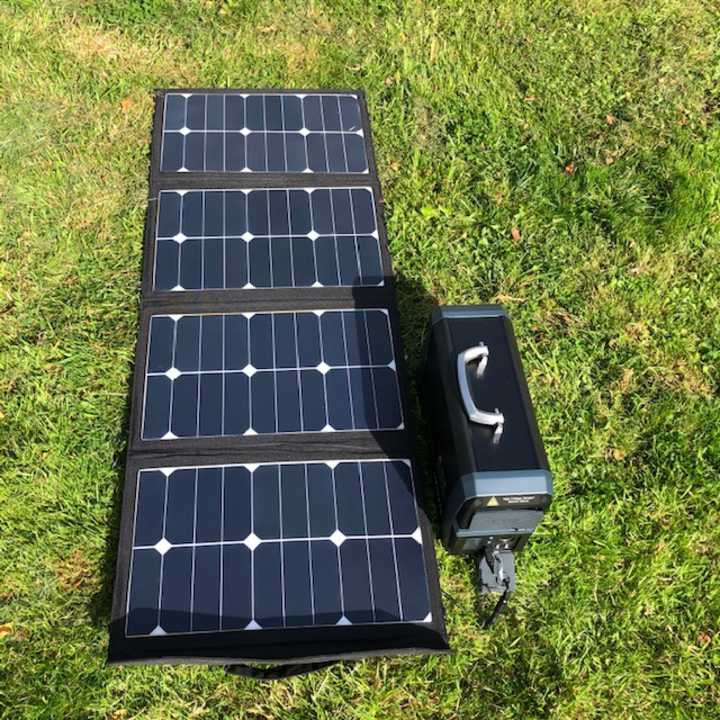

MSC 550W  & MSC 130W (20v) Folding Solar
MSC 550W & MSC 130W (20v) Folding Solar

In common with all our power banks, it will recharge from the mains (7 hours), car auxiliary or our 90W/100W/130W  Folding Solar Panel. The solar panel hard-wired 20v output lead (or 32v from 100W panel) connects directly to the Power Bank via the charging port.

For cooling on Boats, Motorhomes and Caravans, it is also able to run the Total Cool evaporative water cooler.

MSC 500W Super Power Bank & UAV
MSC 500W Super Power Bank & UAV
MSC 500W  Laptop & Total Cool evaporative water cooler
MSC 500W Laptop & Total Cool evaporative water cooler

Product Features

  • High-performance Lithium-ion Grade 'A' Batteries
  • Multiple protection charge/discharge and overcharge/undercharge
  • 2 x USB output, 5v/3A  to charge two devices simultaneously
  • Can charge most Laptops and Notebooks and most portable devices 5v-12v
  • Inbuilt dual plug 220V 500W (1000W peak) AC inverter
  • Suitable for charging model aircraft and drones can run DC Fridges, CPAP and TV.
  • Simple 1 button operation, LED capacity/output display
  • Inbuilt female car charging 12v socket
  • Retains power for months
  • Recharges from  mains (7 hours) or solar panel
  • Compatible with all mobile phones, iPhone, Blackberry™, Nokia™, iPad, Digital Cameras, PSP, ND, PDA, Mp3/Mp 4 player, GPS, Bluetooth, Garmin, and all other USB charged devices. Most Portable 12v devices and AC up to 300w
  • 2 Year Warranty

Technical Specifications

  • Capacity: 14.8V/39Ah (577Wh)  3.7V/156Ah
  • Input Mains AC 19Vdc/10A max,
  • Input Solar 20-45Vdc/8A max
  • Input Car 32v/4A
  • USB Output  DC 5v/3A 15W max
  • Output 1-3 DC 12V/10A 120W max
  • AC Output 500W: 220Vac/2.28A/50Hz    110Vac/4.64A/60Hz
  • AC Instantaneous peak 1000W
  • Over-heat,over-discharge, over-voltage, over-charge short-circuit protection
  • Cycle life > 1000 full charge/discharges
  • Dimensions : 351 x  220 x 128mm
  • Operating temperature:-10C-+50C
  • Weight : 7.5kg

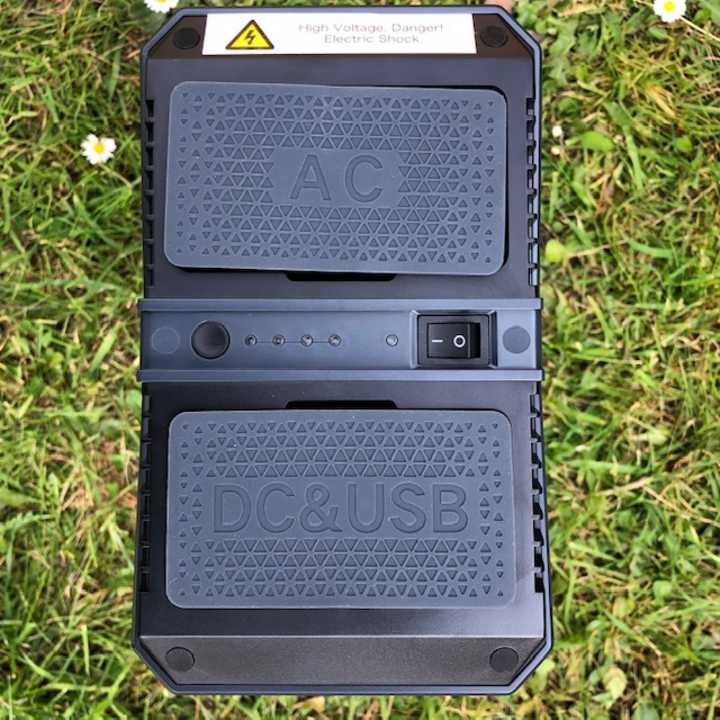

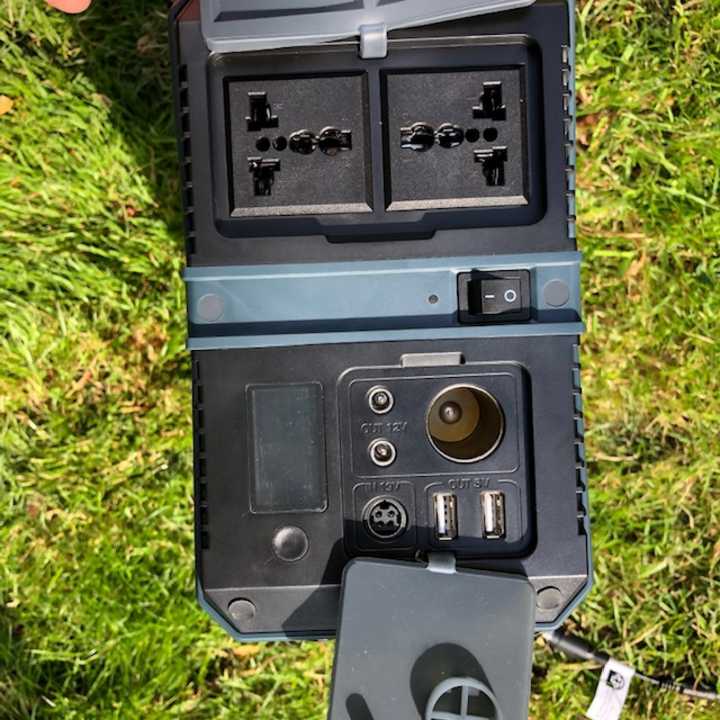

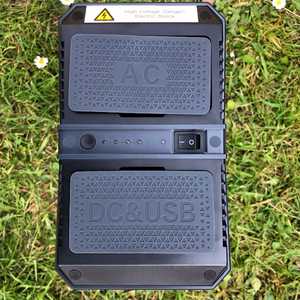

MSC 500W Super + Power Bank
MSC 500W Super + Power Bank
MSC 500W Super + Power Bank
MSC 500W Super + Power Bank

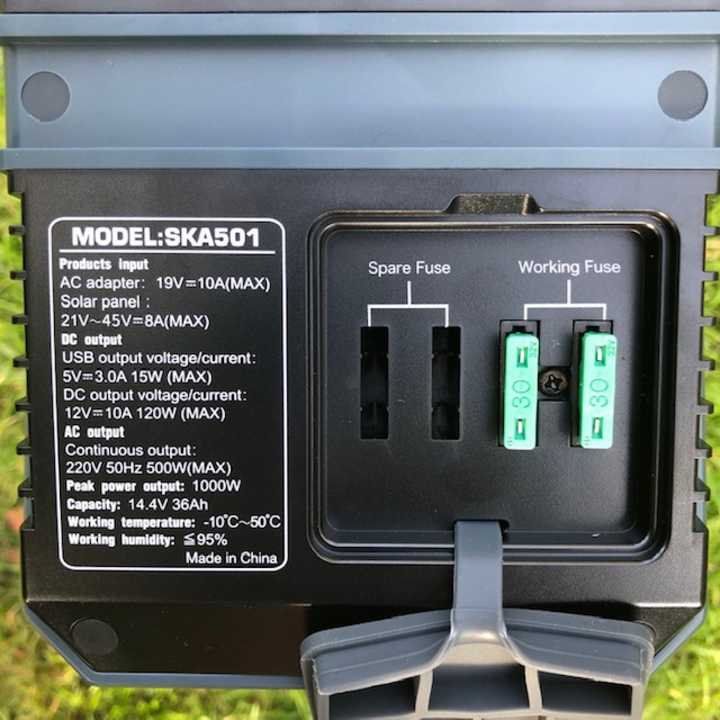

MSC 500W Super + Power Bank  fuses
MSC 500W Super + Power Bank fuses
