Patent Pending GB1615243.1.

This unique off-grid Solar Charging drum has been designed and manufactured by Mike Parker and Tim Smerdon at Mobile Solar Chargers Ltd. Silent, automatic lighting, phone charging, remote CCTV Camera, WiFi, portable, modular, easy to store, life expectancy 10 years. It is intended to replace some of the need for noisy expensive generators, particularly in Camping areas at Festivals, Conservation and Disaster relief.

All the parts are secured within the drum for storage and transport, 180w solar panel, full wiring loom, up to 230Ah Batteries, telescopic poles, frame, 5v/12v multiple power outlets.

Optional accessories include LED flood lights (PIR sensor), additional battery, additional 180w solar panel, remote CCTV, mobile WiFi router, (MiFi), inverter and removable Li-Po Power banks (up to 300Ah).

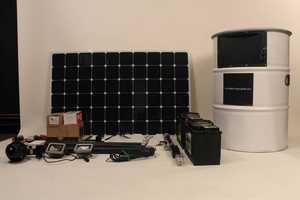

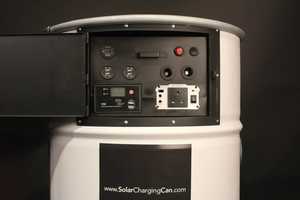

MSC Solar Charging & Lighting Drum
MSC Solar Charging & Lighting Drum

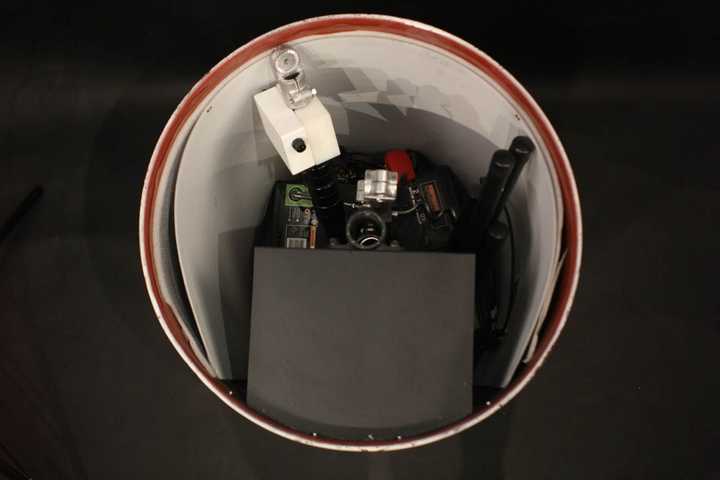

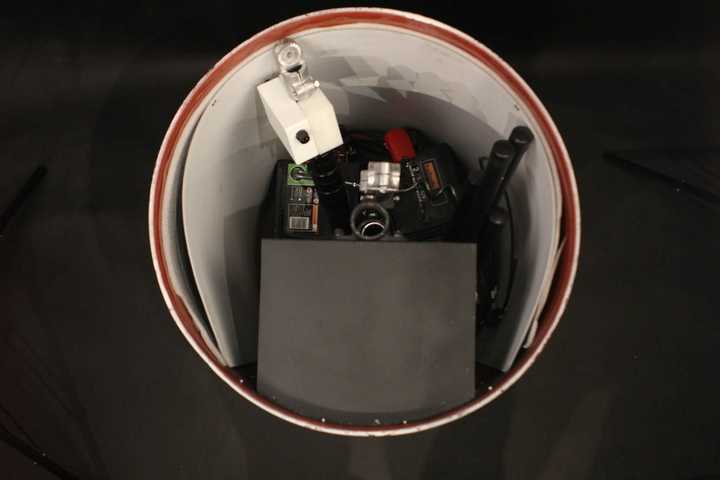

Contents MSC Solar Charging & Lighting Drum
Contents MSC Solar Charging & Lighting Drum
MSC Solar Charging & Lighting Drum
MSC Solar Charging & Lighting Drum

 Ideal off-grid power, CCTV, lighting for Staff at outdoor Events and Festivals.

Since it is pre-wired with all the components secured in the drum, it can be assembled by two people in half an hour or disassembled for movement or storage in the same time.

It is a modular power generator, since although most end-users may have different requirements, the basic Solar Charging Can has an instant change of use by swapping the removable power control box, adding an inverter, MiFi, CCTV or the removable Li-Po super power banks.

SOlar Charging Can 2
SOlar Charging Can 2

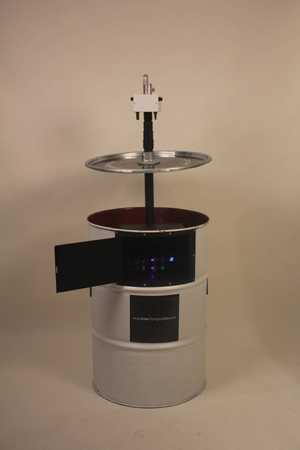

Solar Charging Can & Controller 2
Solar Charging Can & Controller 2

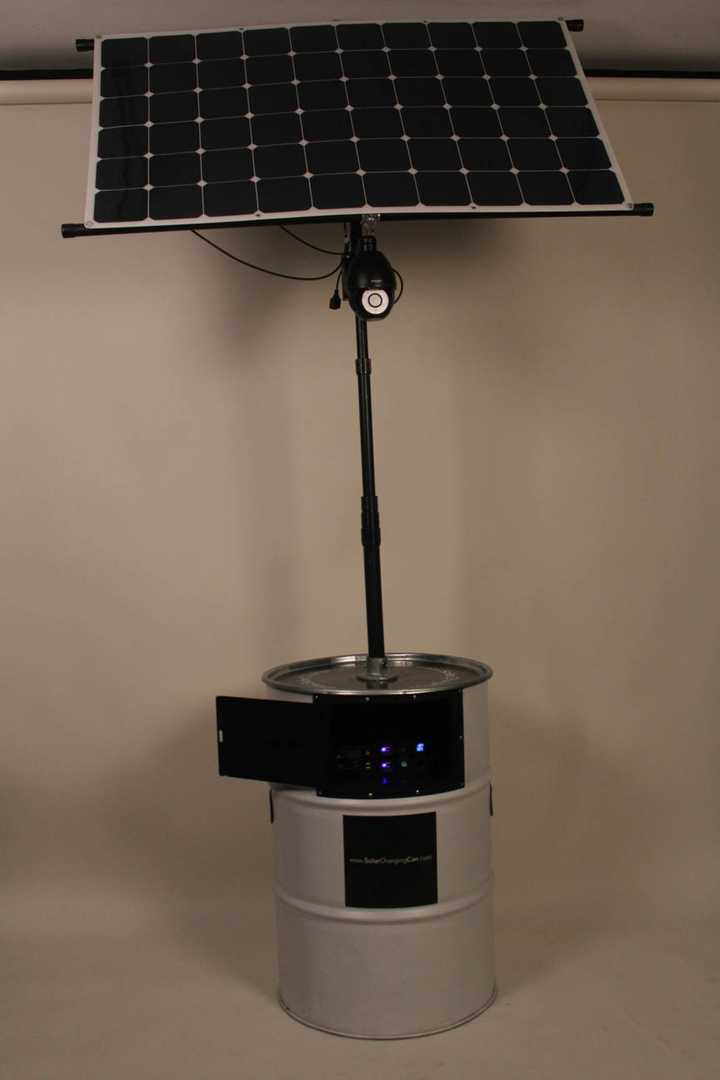

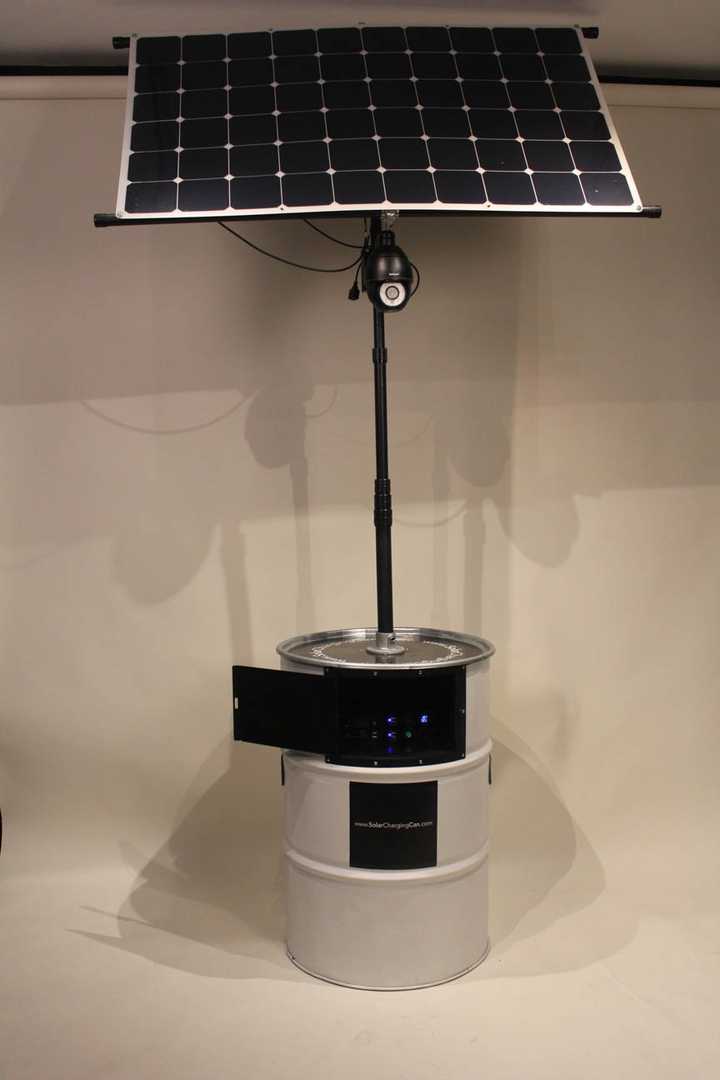

Solar Charging Can deployed
Solar Charging Can deployed

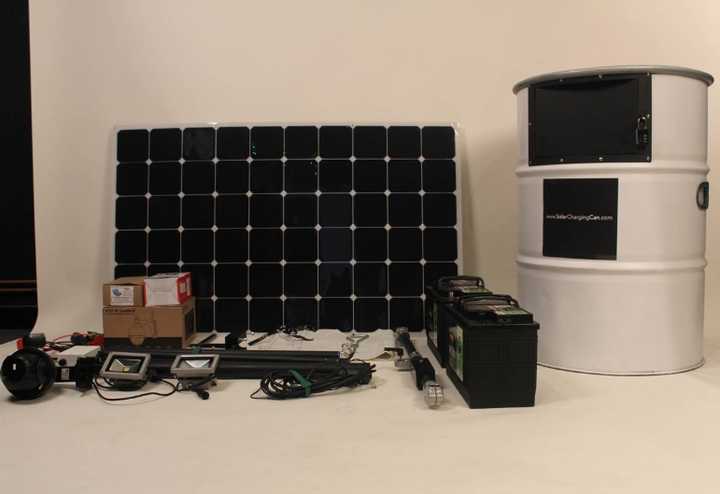

 The Patented Solar Charging Can includes as Standard :

Painted Steel Drum with detachable top, vents, carrying handles and Containing :

  • 180W/18v 5.5A water-proof FLexible solar panel
  • 2 x 115Ah deep-cycle leisure Batteries
  • 12v Waterproof Solar safe charge regulator and controller
  • 3m of telescopic aluminium poles and couplings
  • Pre-assembled full wiring loom with waterproof IP67 connectors, 12V Battery lead
  • Removable steel box contaning control panel with integrated solar controller and usb 5v/12v power outlets
  • Land anchor for securing drum to the ground
  • 2 x Sandbags for ballast

Optional :

  • Remote CCTV camera
  • WiFi (MiFi) router
  • Removable Li-Po super power Banks 47Ah or 113Ah
  • Additionasl removable Control box with Inverter and controllers
  • LED lighting & PIR sensors
  • Tracker Security GPS
  • Additional 180W solar Panel & mounting frame
  • Extra 10w Led Lights, 20m wiring

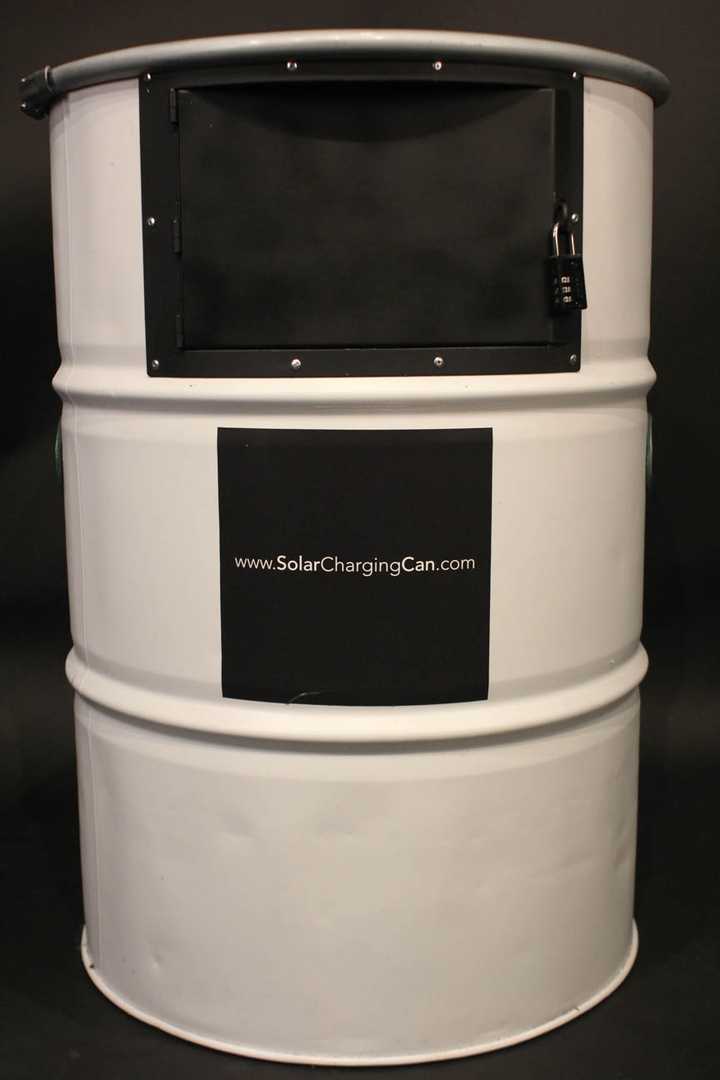

Solar Charging Can 1
Solar Charging Can 1

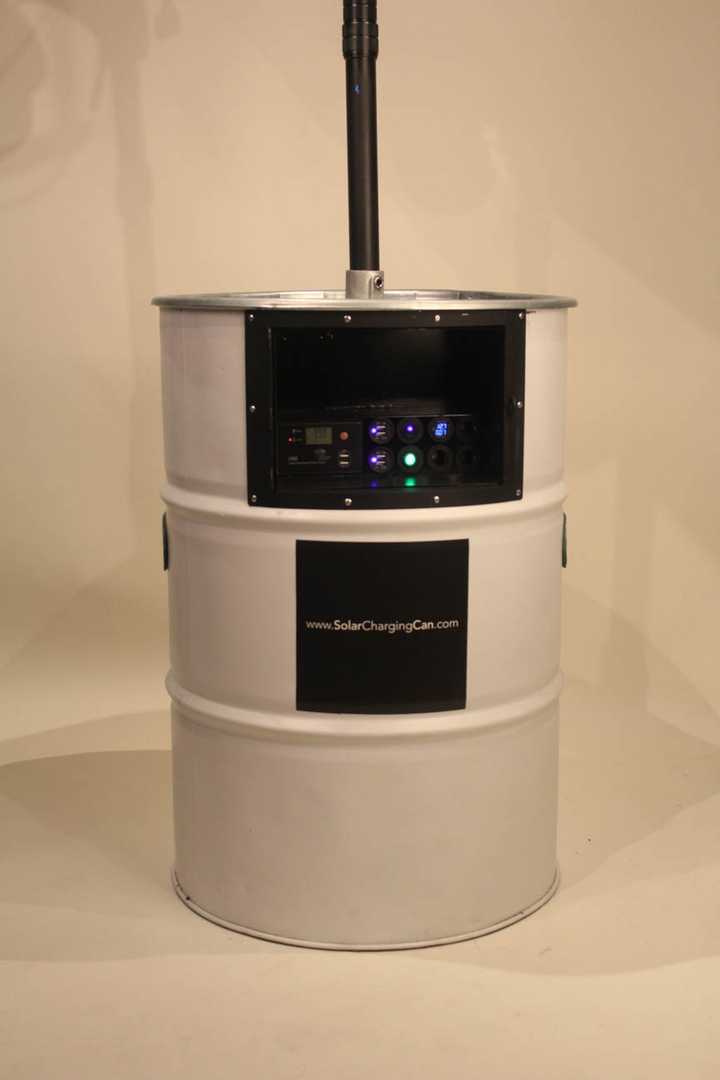

Solar Charging Can & Controller
Solar Charging Can & Controller

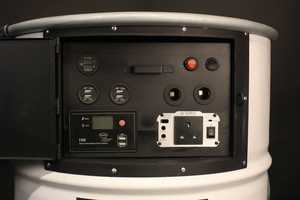

Solar Charging Can & Inverter
Solar Charging Can & Inverter

The 180W/18V 5.5Ah MonoCrystalline light weight lexible solar panel will automatically recharge the Lead Acid batteries and power the outlets during all hours of sunlight.The 12v safe charge solar regulator will make sure that the current and voltage stay within the limits of the battery and adapt to any variations in solar generation, i.e. cloud cover. It will automatically take into account if a 2nd battery is added to the circuit.

The Standard Can was designed to be flexible in the variations of use, pre-wired to accept any of the optional extras if ordered at a later date.

MSC 100w folding Solar panel charger
MSC 100w folding Solar panel charger

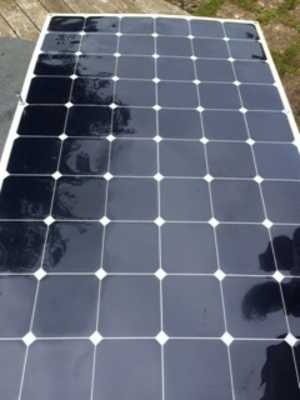

MSC Folding 180W 18v/5.5Ah Solar Charging Can
MSC Folding 180W 18v/5.5Ah Solar Charging Can
MSC Solar Charging Can Lights
MSC Solar Charging Can Lights

Since each Solar Charging Can is made to order (1 month lead time)  it is possible to adapt to specific requirements, i.e. Variations in LEDs, CCTV, WiFi requirements, auxillary charging of other devices.

Mobile Solar Chargers have specialised in fit for purpose portable power for over 4 years, our products have been across the Atlantic, Arctic, Kilimanjaro and Everest base,  if you have a particular project give us a call. We have Li-ion portable power banks up to 113Ah with variable voltage from 5v-19v, rechargeable from our solar.

For Enquiries please contact us on 01621 828721 or email enquiries@solarchargingcan.com

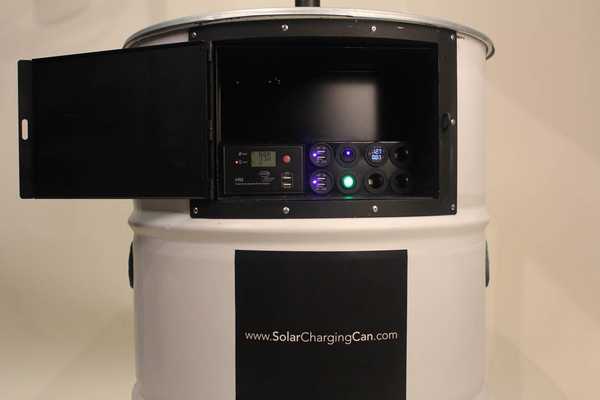

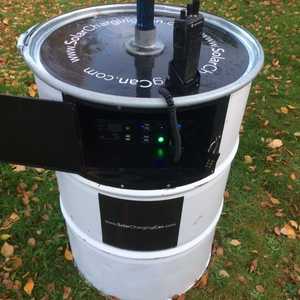

Solar Charging Can and Controler
Solar Charging Can and Controler

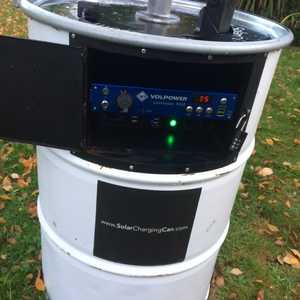

Solar Charging Can & Removable 113Ah Power Bank
Solar Charging Can & Removable 113Ah Power Bank

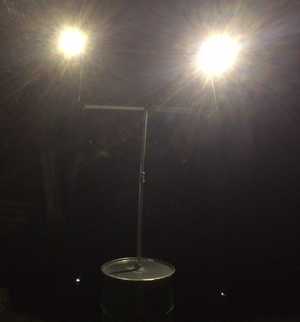

MSC Solar Lighting Can at night
